HIGH CAPACITY VACUUM CONVEY SYSTEM - MULTI SOURCE

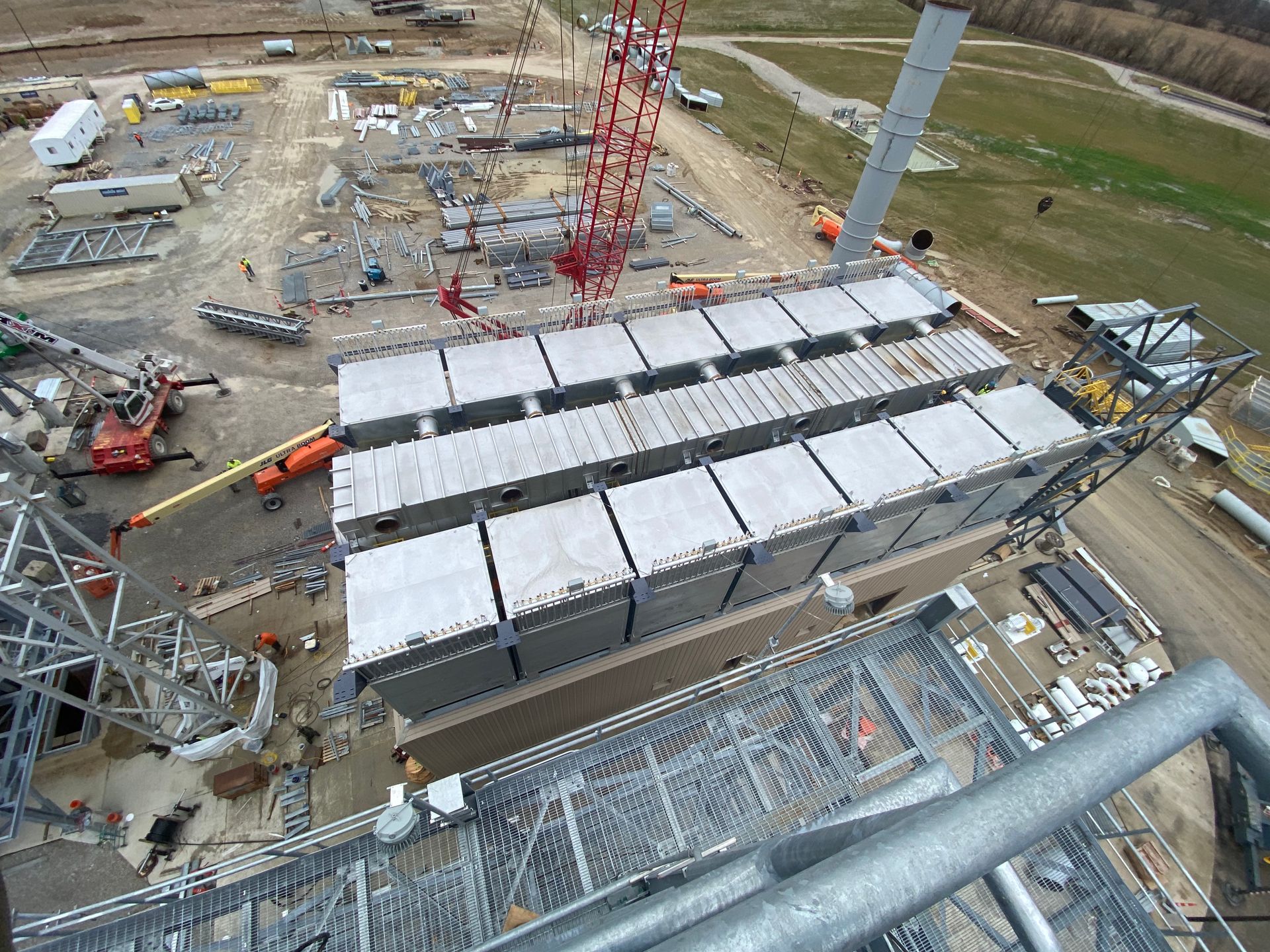

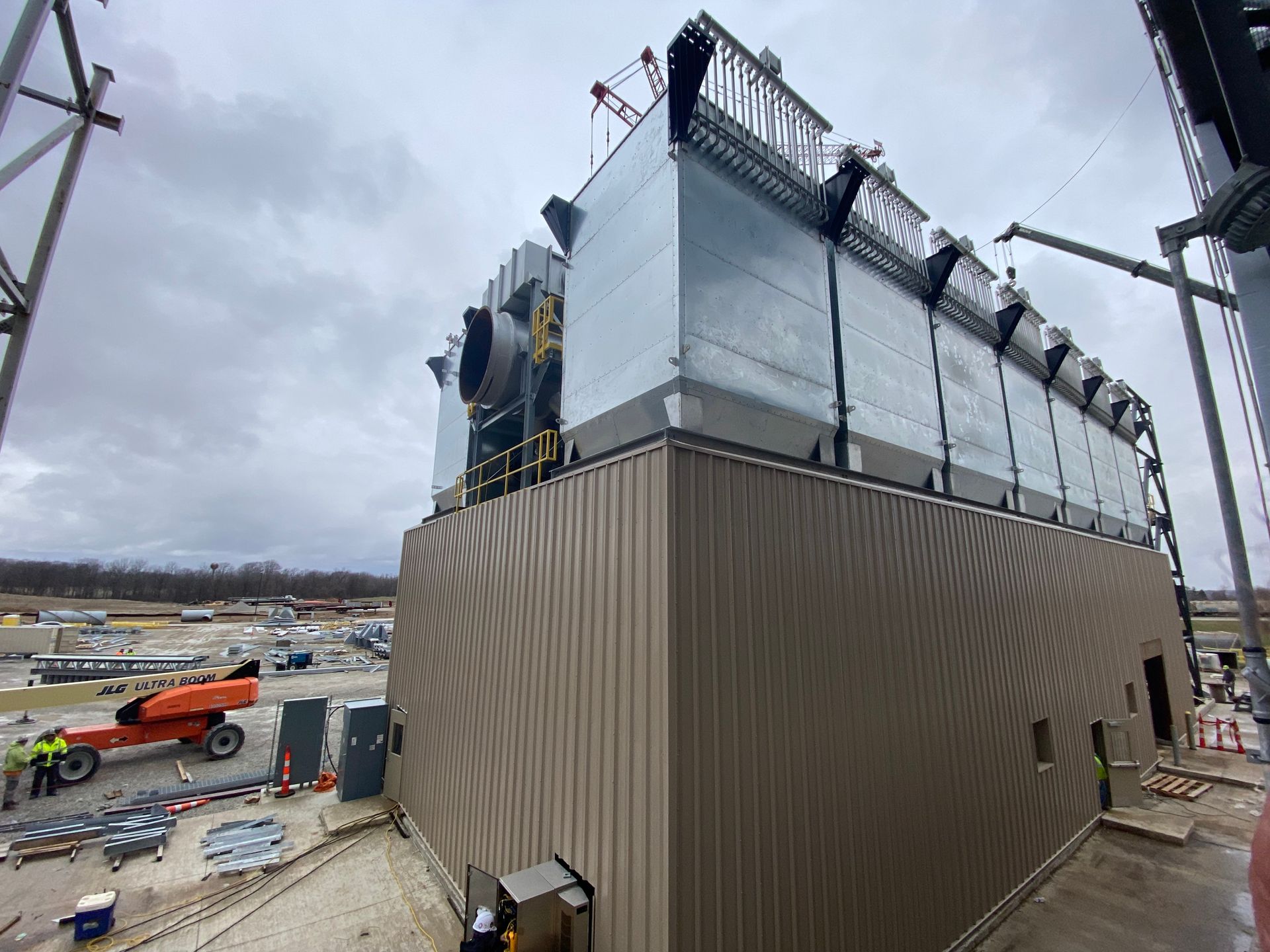

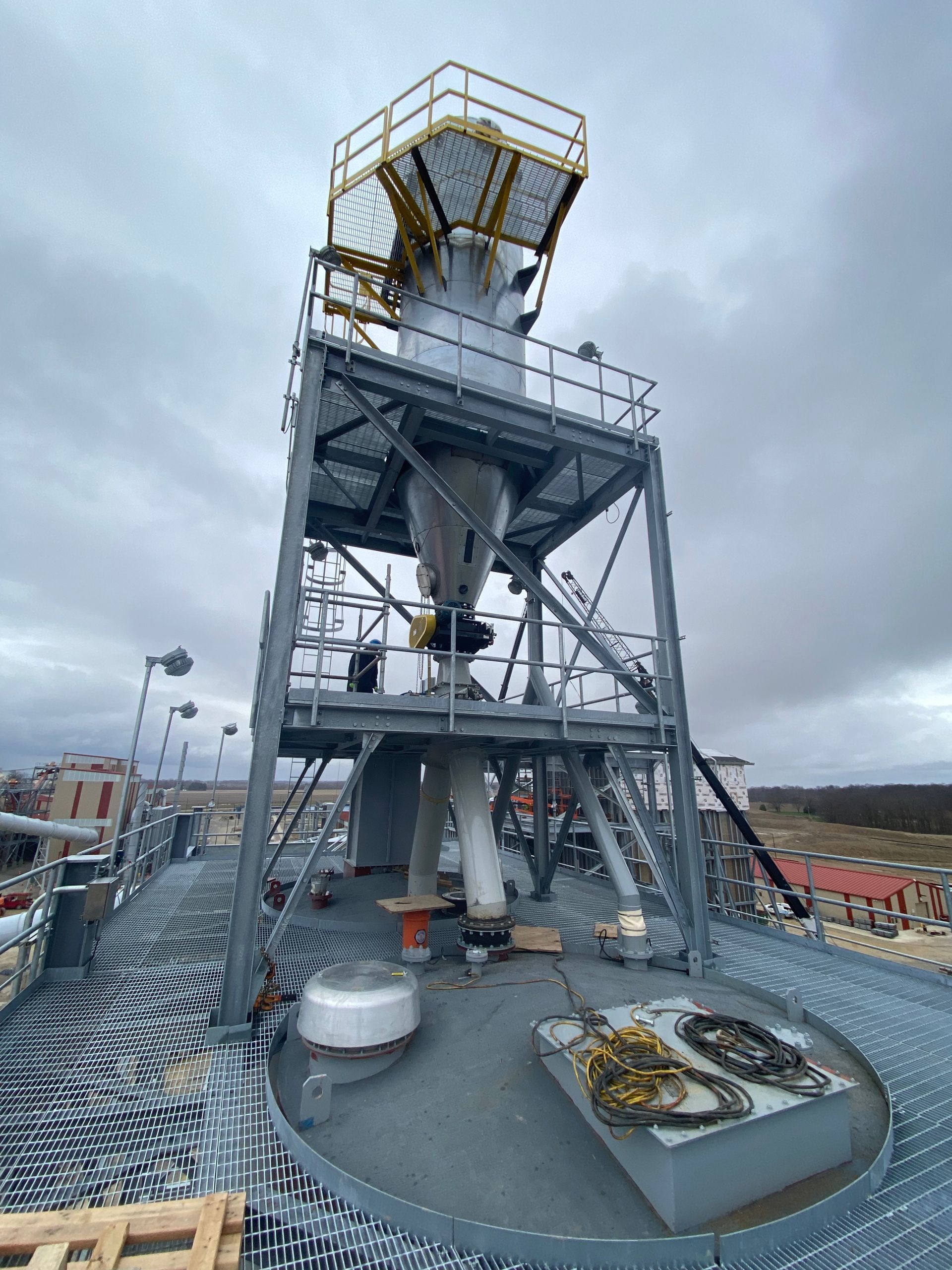

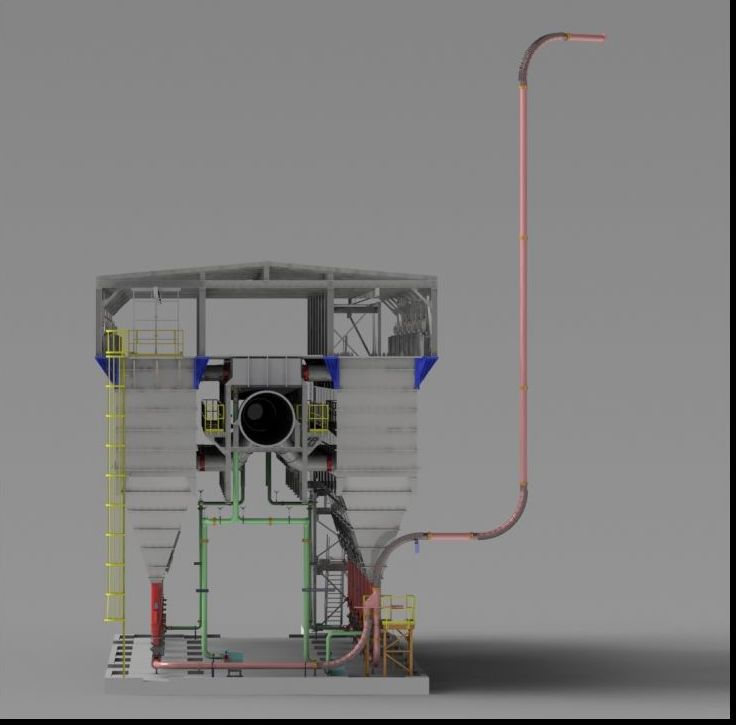

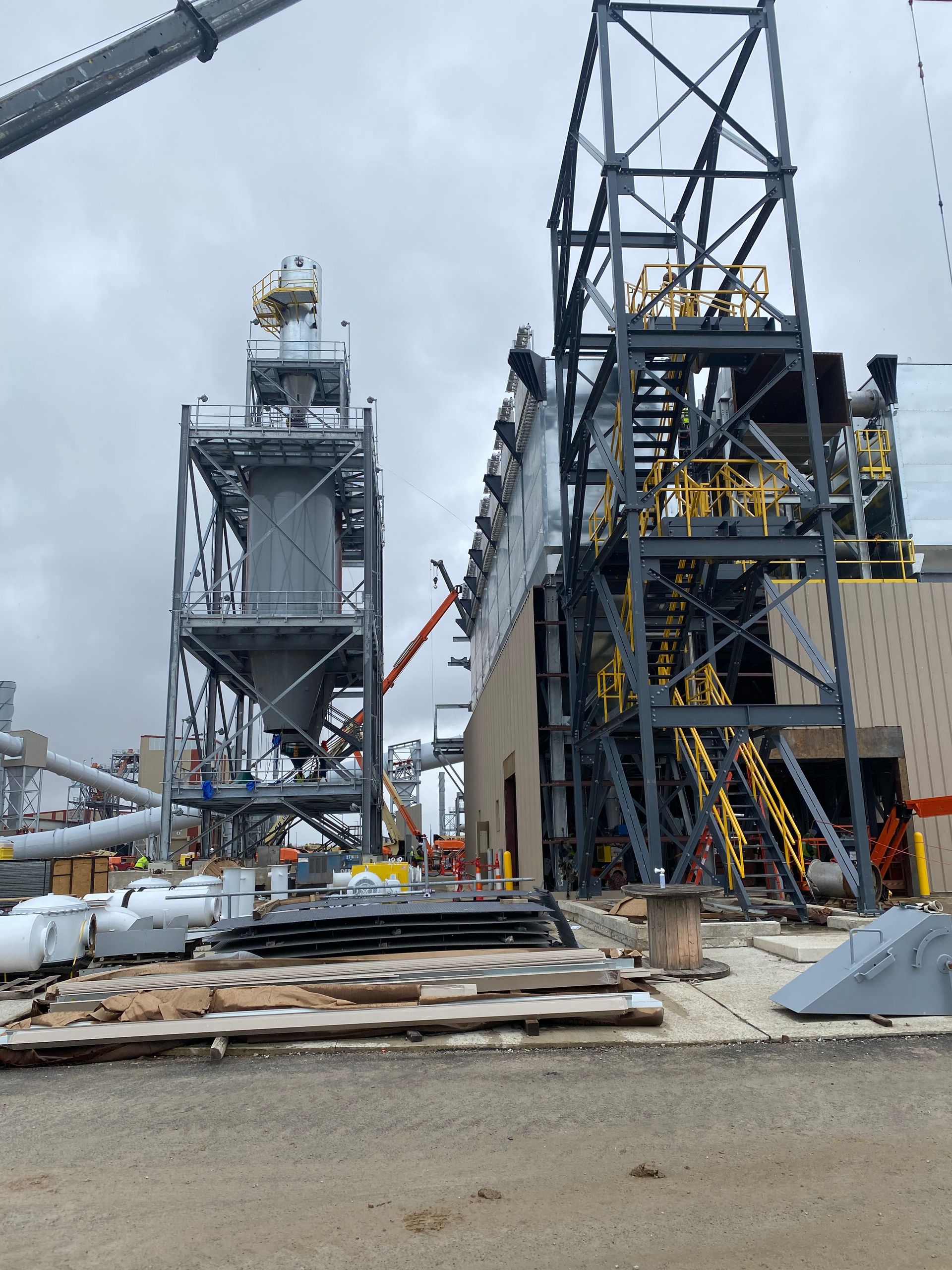

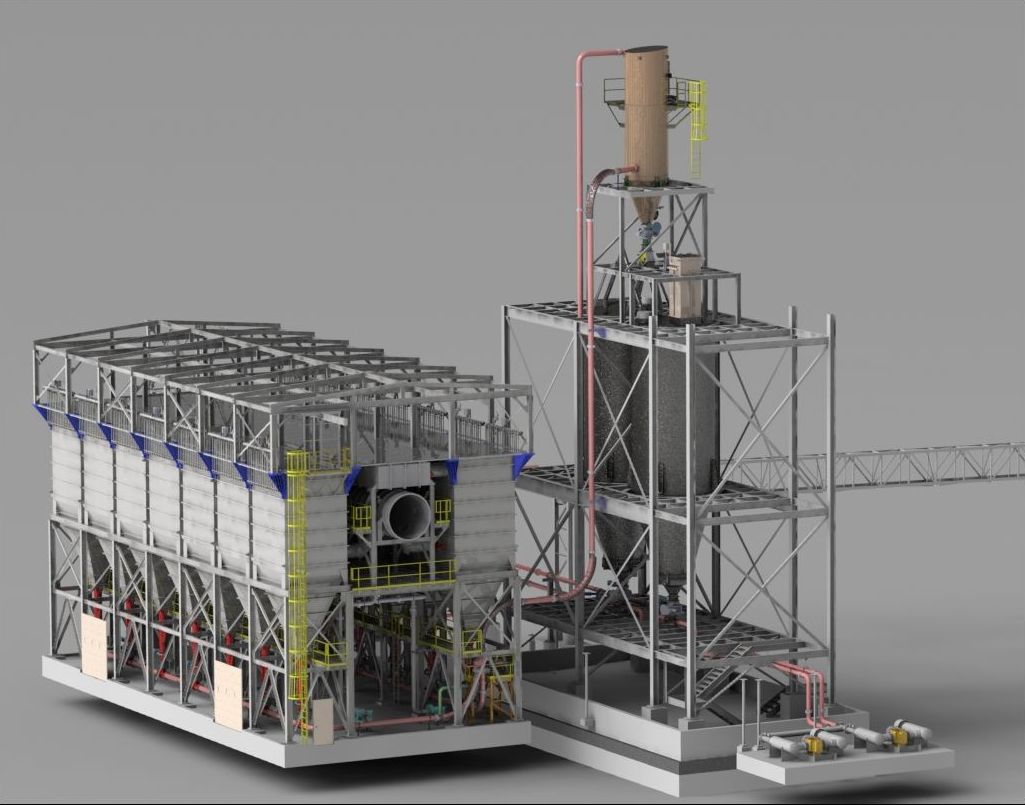

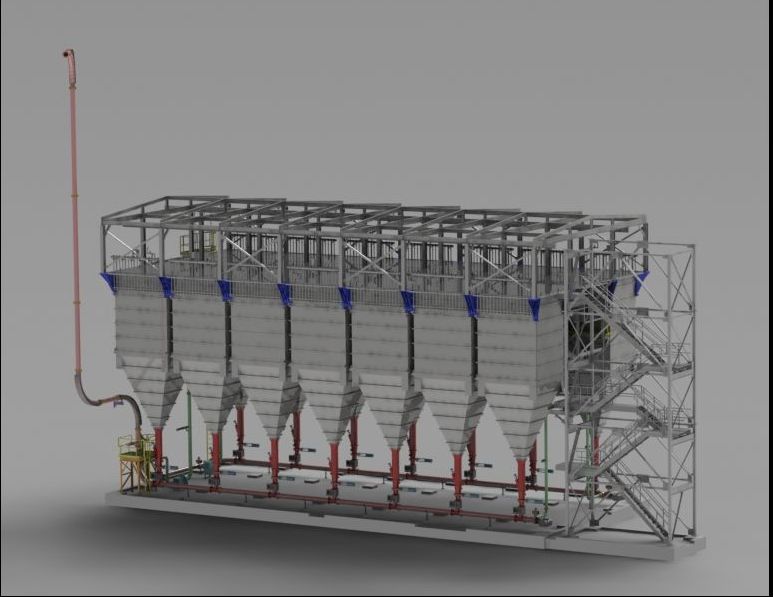

Matrix designed and specified equipment for a modular (14) Section Product Final Dust Collector and vacuum take-away system.  A 150HP Vacuum Blower was deployed for pulling the hot and abrasive product through (2) 10" branch convey lines serving (7) modular DC sections each to a common converging switch and ultimately through a vacuum receiver/filter with the capability of dropping product to (2) 100MT Silos.  Design rate for the system was 15 mtph.  The system design rose to over 115ft above grade.
