WWTP & Lift Station Replacement with SCADA System - City of LaCenter

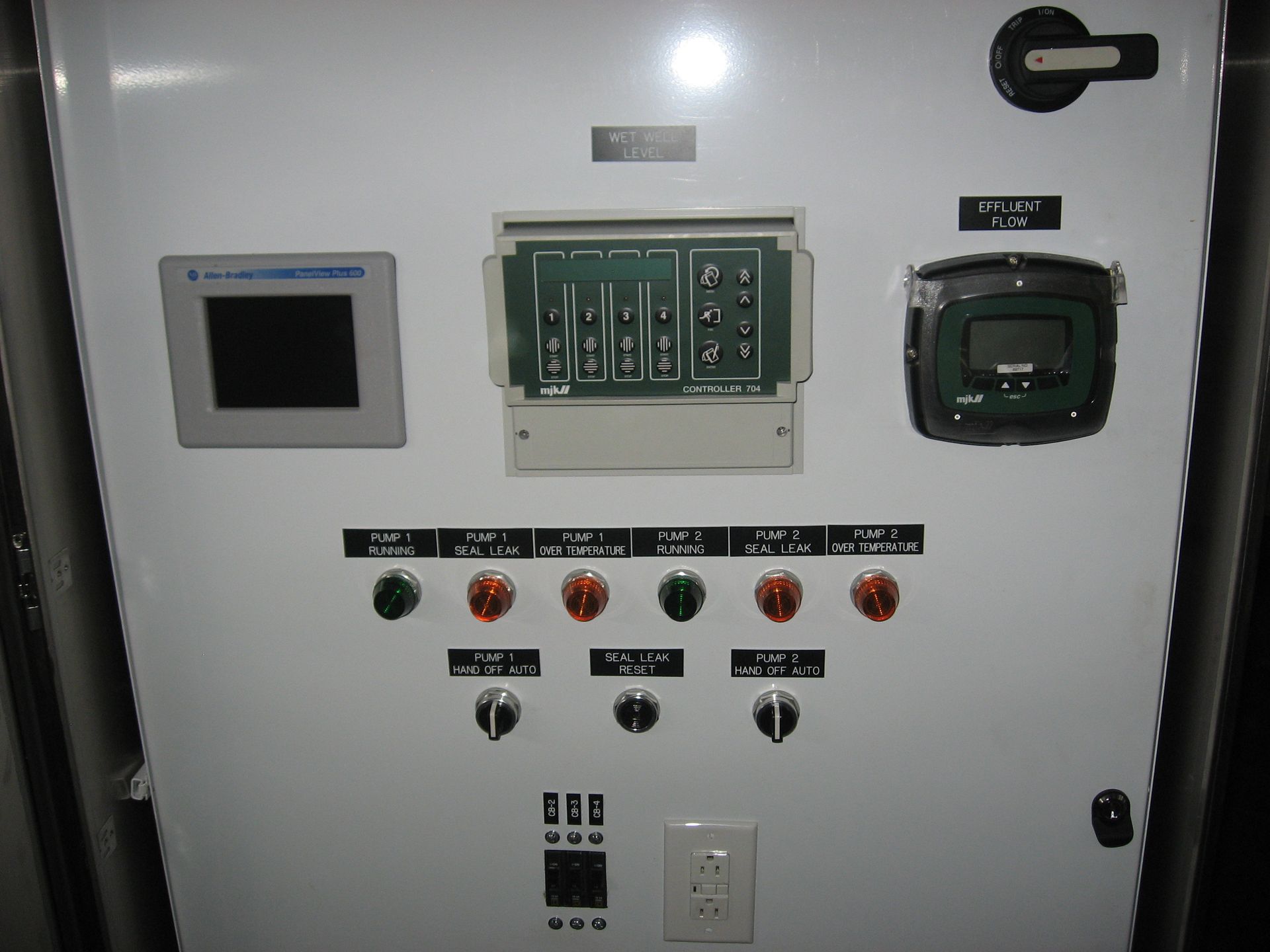

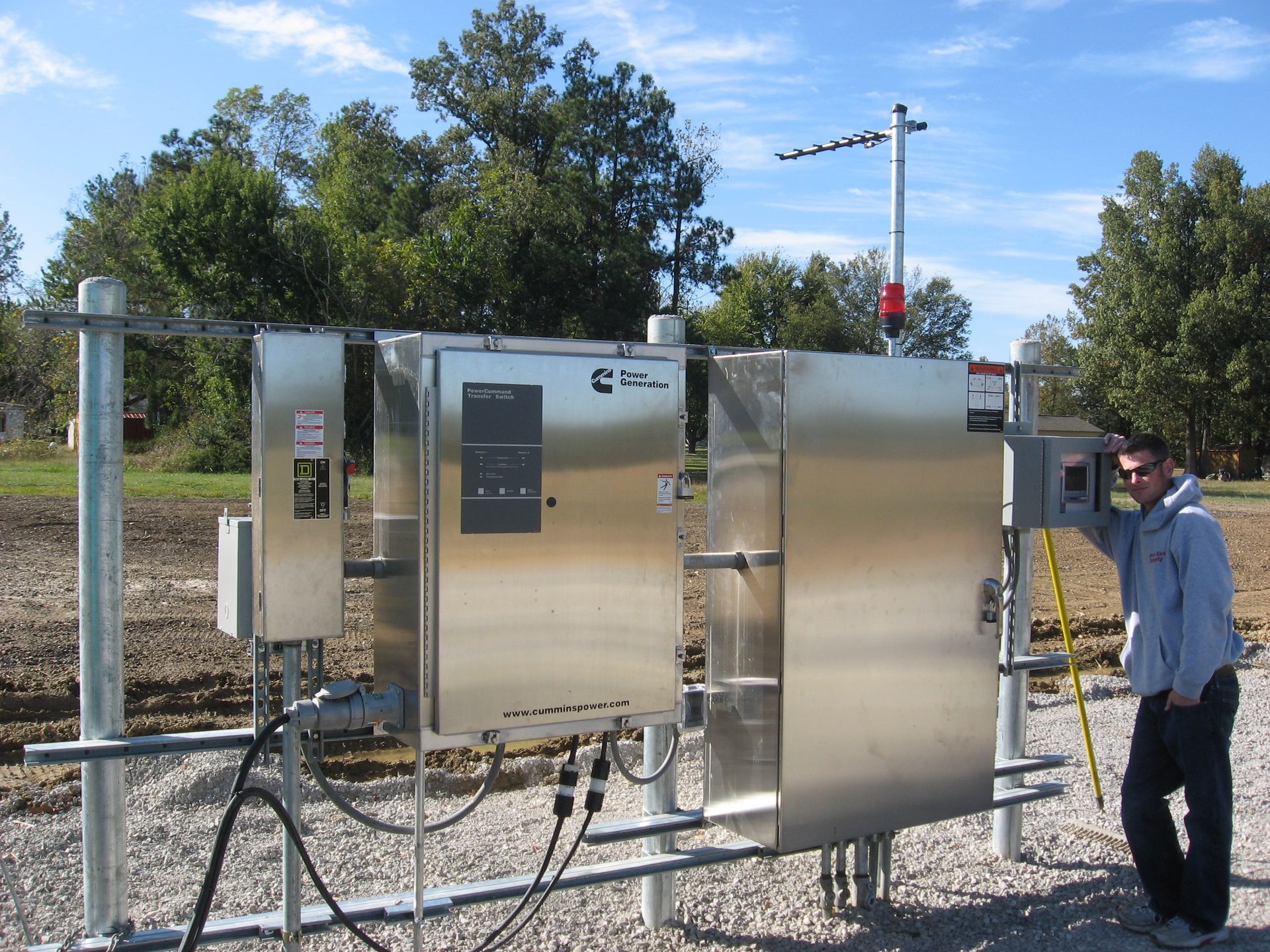

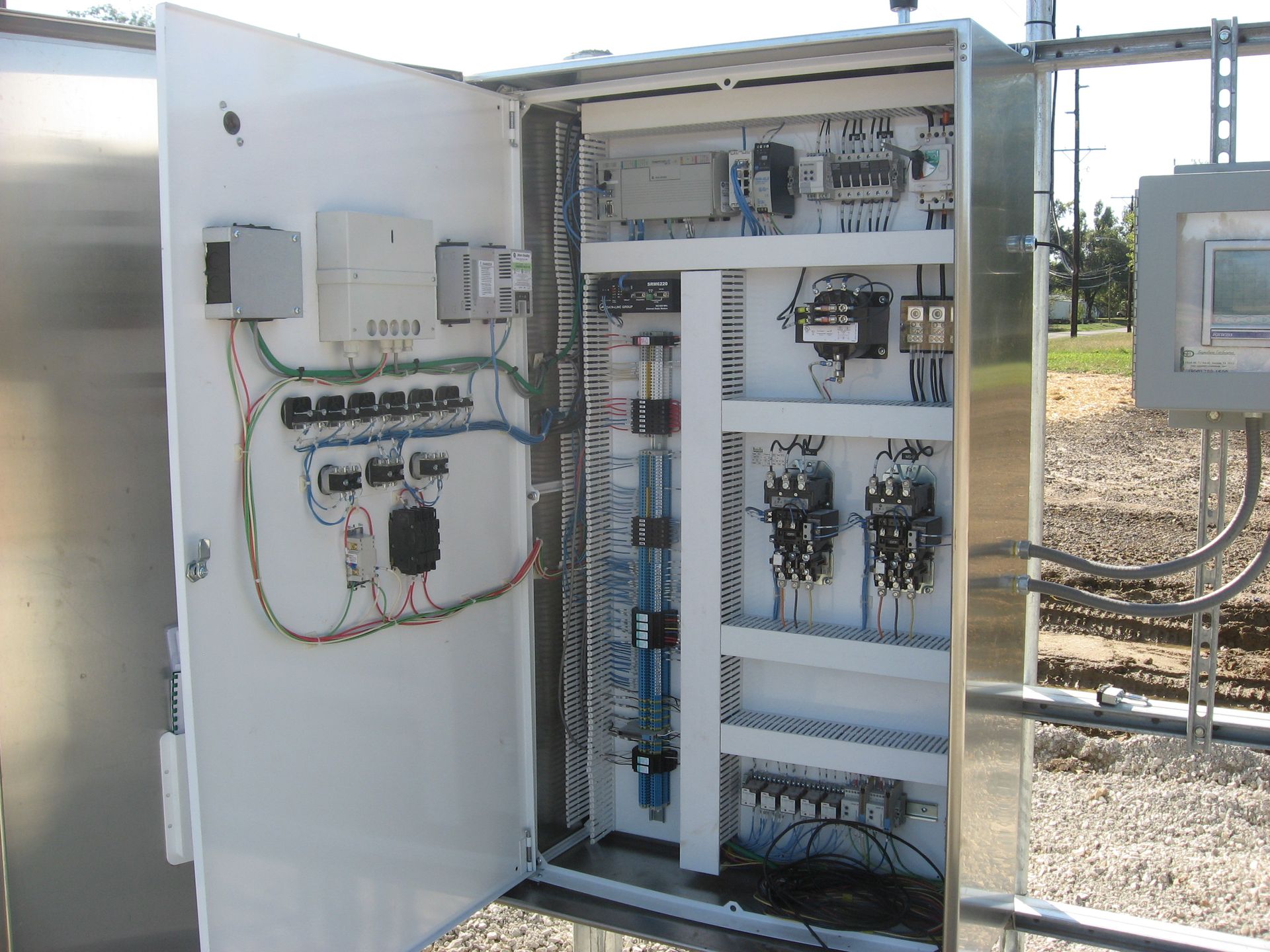

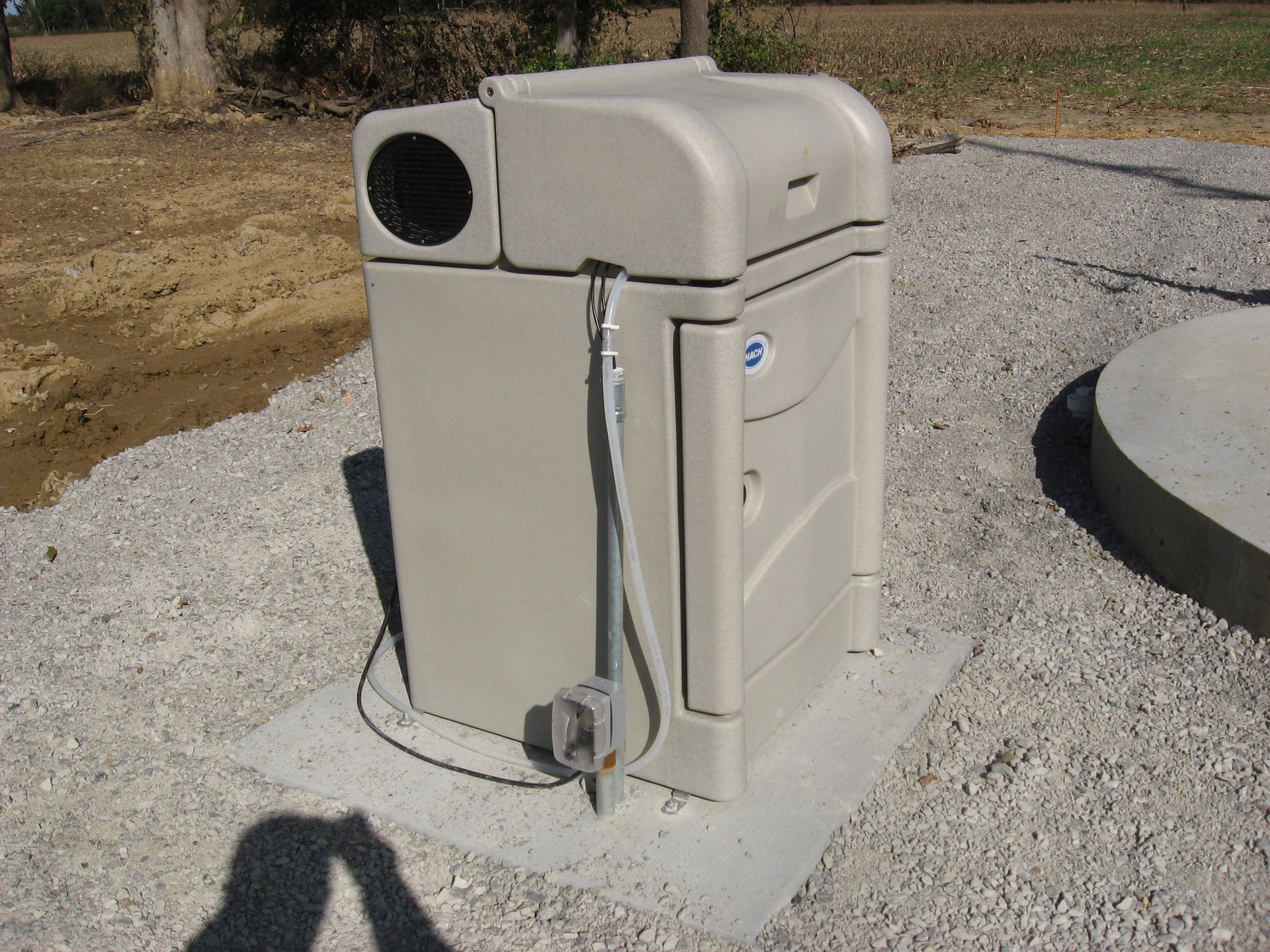

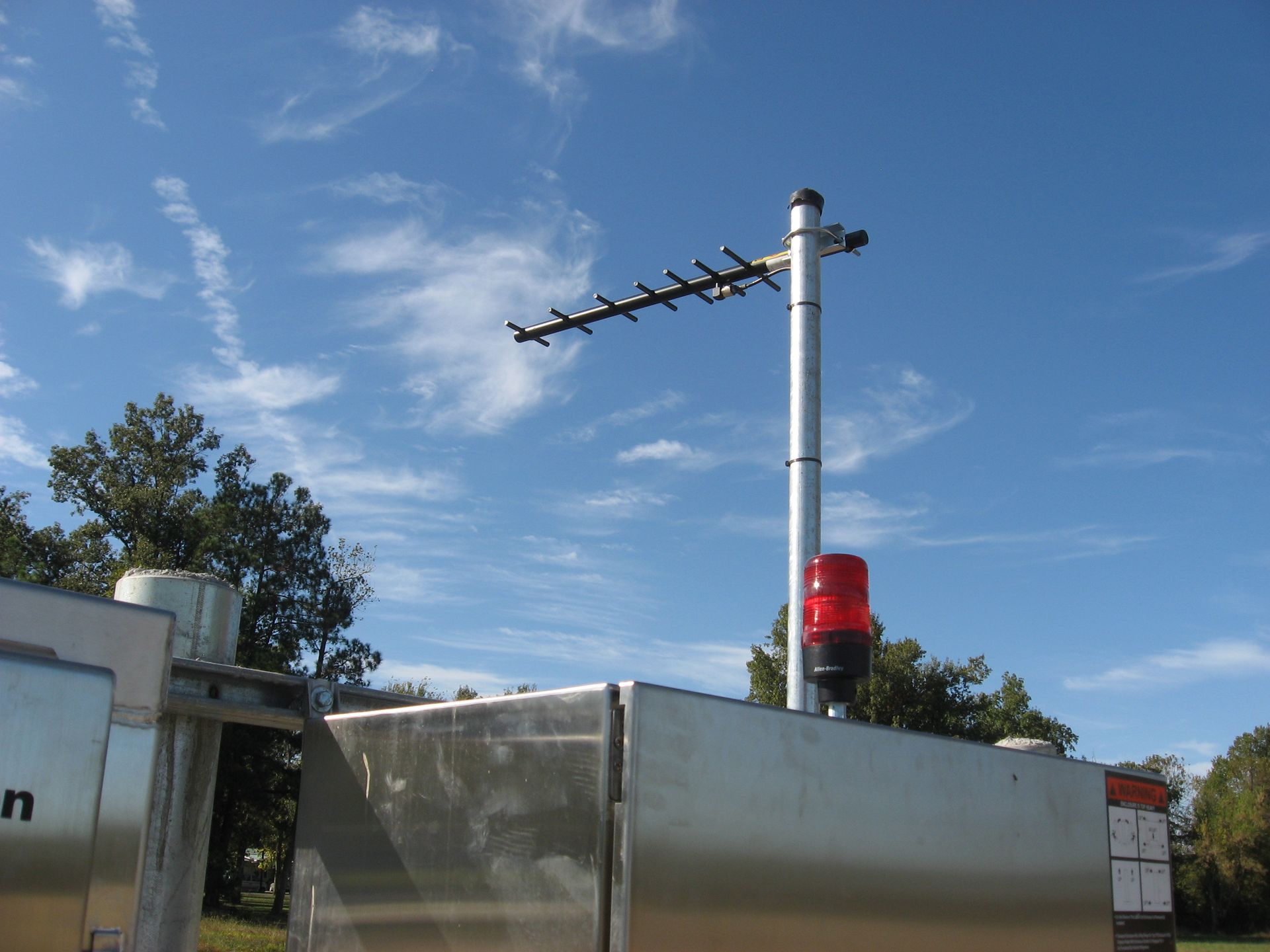

Matrix Engineering provided the electrical design, supply and implementation of (2) control systems for the city of La Center KY’s Eastside and Broadway wastewater lift stations. Each control system operated a wet well with HP duplex pumps, level control and flowmeter. Each station was equipped with an HMI for operator interface as well as a data recorder to track and log the operating history of the lift station. A refrigerated composite sampler was also integrated which allowed operators to monitor pH/temperature and dissolved oxygen levels in the effluent.  Matrix also provided an AB Factory Talk View SCADA system was installed to monitor operating and flow conditions at the Eastside and Broadway lift stations through radio communication.
